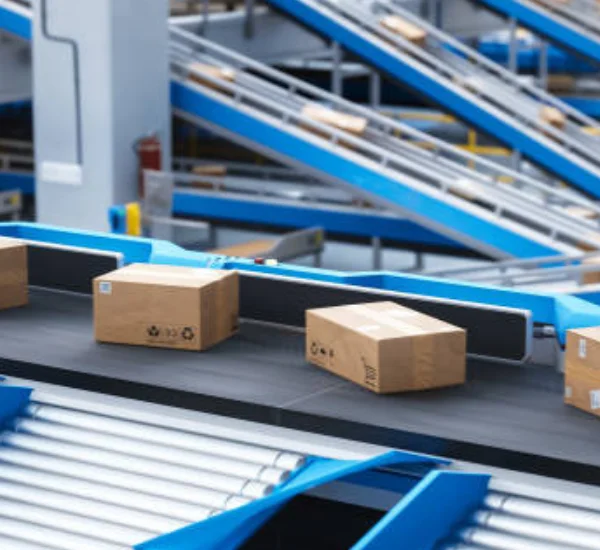

A belt conveyor is a mechanical material handling system that uses a continuous belt to transport goods or materials from one location to another. It is widely used for moving bulk materials, packages, boxes, and industrial components over short or long distances.
The system typically consists of a motor-driven belt stretched over pulleys, supported by rollers or a flat surface.
Main Components of a Belt Conveyor
Understanding the basic components helps in better operation and maintenance:
1. Conveyor Belt
The main carrying medium of the system. It is usually made of rubber, PVC, fabric, or metal depending on the application.
2. Drive Pulley (Head Pulley)
Connected to a motor, it drives the belt forward.
3. Tail Pulley
Located at the opposite end of the drive pulley, it guides the belt and maintains alignment.
4. Idlers/Rollers
Support the belt and reduce friction during movement.
5. Motor & Gearbox
Provide the power required to rotate the drive pulley.
6. Frame Structure
The supporting structure that holds the entire conveyor system.
Working Principle of Belt Conveyor
The working principle is simple yet highly effective:
The motor rotates the drive pulley.
The drive pulley moves the conveyor belt.
Materials placed on the belt are carried from the loading point to the discharge point.
The belt returns via the return idlers to repeat the cycle.
The movement is continuous and smooth, making it ideal for automation systems.
Types of Belt Conveyors
There are different types of belt conveyors based on design and application:
Flat Belt Conveyor – Used for transporting light to medium-weight materials.
Inclined Belt Conveyor – Designed to move materials between different heights.
Cleated Belt Conveyor – Has raised sections to prevent materials from sliding.
Modular Belt Conveyor – Made of interlocking plastic segments.
Heavy-Duty Belt Conveyor – Used in mining and bulk material industries.
Applications of Belt Conveyors
Belt conveyors are widely used in various industries:
1. Manufacturing Industry
Transporting raw materials and finished products.
2. Warehousing & Logistics
Moving cartons, packages, and goods.
3. Airports
Handling luggage systems.
4. Mining Industry
Transporting coal, ore, and bulk materials.
5. Food Processing Industry
Carrying packaged and processed food products.
Maintenance Tips for Long Life
To ensure long-lasting performance:
Regularly check belt tension and alignment
Inspect rollers and pulleys
Lubricate moving parts
Clean the belt surface
Monitor motor and gearbox performance
Preventive maintenance reduces downtime and increases efficiency.
Conclusion
Belt conveyors are an essential part of modern industrial automation. Their ability to transport materials efficiently, safely, and continuously makes them indispensable across multiple industries. With proper design and maintenance, a belt conveyor system can significantly improve operational productivity and reduce overall costs.
If your business relies on material handling, investing in a high-quality belt conveyor system can be a smart and future-ready decision.
